How much does an arc flash study cost?
Arc flash study pricing is driven almost entirely by how many equipment locations must be modeled and how good your existing drawings and data are. A small facility with a few panels and current one-lines sits at the low end — typically a few thousand dollars. A mid-size industrial plant or a multi-site municipal system with dozens of buses, stale drawings, and field verification runs well into five figures. Large, multi-facility utility systems scale from there. Any quote that arrives without asking about bus count, drawing condition, and field access is guessing — and the contingency for that guess is built into the price you're seeing.
What actually drives the price
Five factors set most of the cost. When you understand them, competing quotes become comparable instead of mysterious.
- Equipment count. The study models every bus, panel, MCC, transformer, and protective device in scope. Pricing scales roughly with the number of equipment locations that get an incident energy calculation and a label.
- Condition of your drawings. Accurate, current one-line diagrams make the model fast to build. Missing or decades-old drawings mean the consultant reconstructs the system in the field — often the single largest cost variable.
- Field data collection. Verifying transformer nameplates, conductor sizes and lengths, breaker types, and actual (not drawn) protective device settings. Skipping this makes the study cheaper and less trustworthy in equal measure.

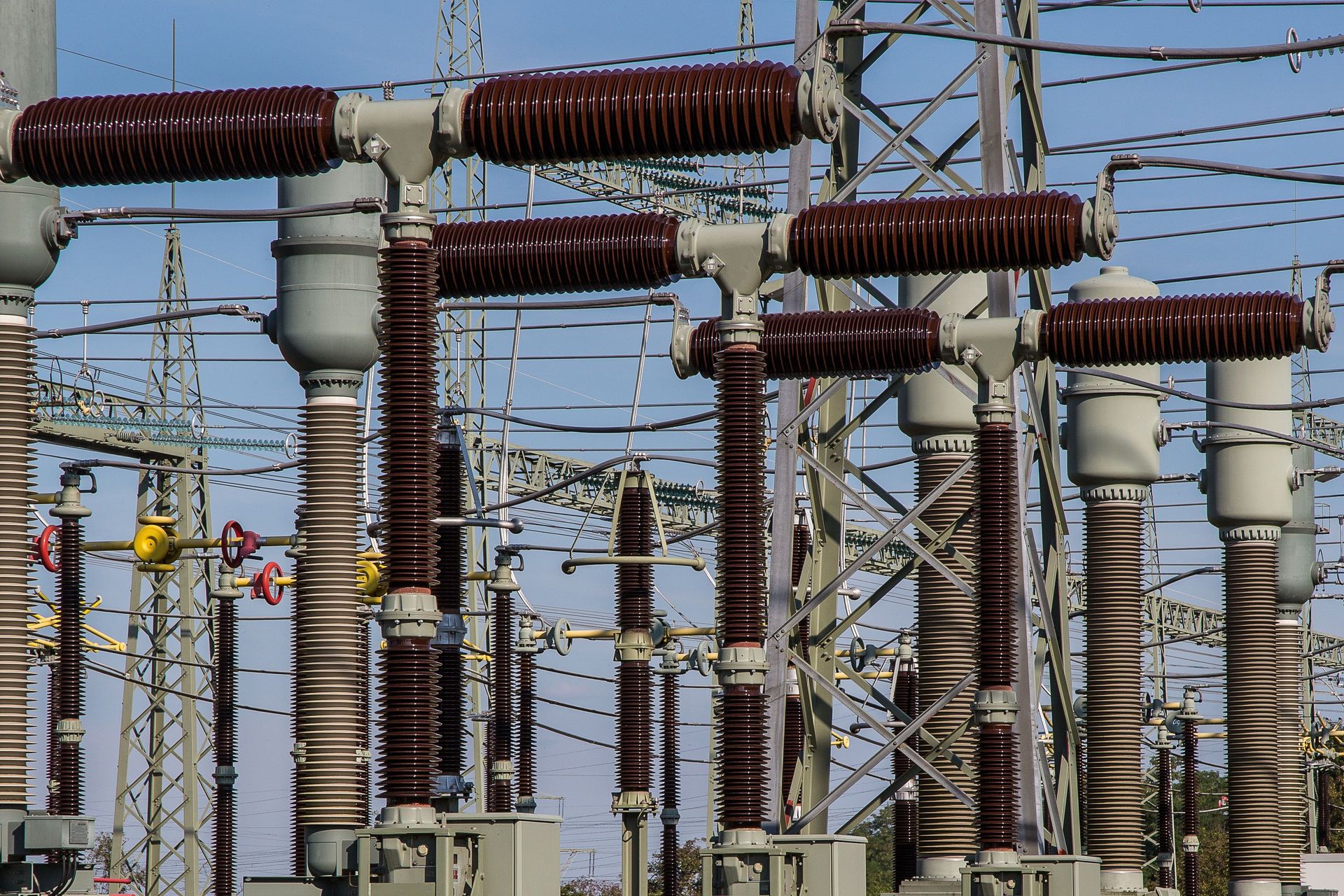

- Utility source data. Available fault current and upstream protection from your serving utility. Usually a request letter, occasionally a slow one — it affects schedule more than price, but it gates everything.
- Deliverables. A PDF report is the floor. Printed and installed labels, protective device setting recommendations, a coordination review, worker training, and handover of the working model each add scope — and value.
Typical cost brackets
Treat these as orientation, not quotes — real pricing follows the factors above. They reflect common market ranges for studies performed to IEEE 1584-2018 with field verification.
| System size | Typical scope | Typical bracket |
|---|---|---|
| Small facility | One service, a handful of panels, current drawings | Low thousands |
| Mid-size plant or campus | Dozens of buses, MCCs and VFDs, partial field verification | Mid four figures to low five figures |
| Multi-site municipal utility | Many distributed sites (pump stations, plants), stale one-lines, full field program | Five figures, scales with site count |
The honest caveat: two studies with the same headline price can differ enormously in what you receive. The scope questions below are how you compare them.
What a complete study includes
A study worth paying for delivers all of the following, because they depend on each other:
- Short-circuit analysis — available fault current at every bus, checked against equipment ratings.
- Protective device review — the actual settings in the field, because clearing time drives incident energy as much as fault current does.
- Incident energy analysis per IEEE 1584-2018 — calories per square centimeter and arc flash boundary at each working location.
- Labels — printed, durable, and installed on the gear, meeting NFPA 70E field-marking requirements. A label in a PDF protects nobody.
- Report and recommendations — problem buses identified, with options to reduce energy (settings changes, maintenance switches, remote operation).
- The model itself — handed to you at closeout so the next update is an update, not a restart.
Why quotes vary so much
Three scope games explain most price gaps. Desktop-only studies skip field verification and inherit every error in your drawings. Label-count pricing that excludes installation leaves you with a box of stickers. And model lock-in — keeping the working model in the consultant's environment — makes every future update a fresh engagement. Ask every bidder the same three questions: is the data field-verified, are labels installed, and do we keep the model? The answers usually explain the spread better than the numbers do.
How to keep the cost down without cutting corners
- Gather your drawings first. Even old one-lines beat none — they tell the consultant what needs verifying versus rebuilding.
- Bundle the coordination study. It runs on the same model, and coordination fixes are often the cheapest way to lower incident energy at your worst buses.
- Phase a multi-site system. Start with the sites workers enter most; expand on a schedule. Priority now, coverage over time.
- Keep the model current. NFPA 70E requires review at least every five years, or after major modifications. If you own the model, that review is a fraction of the original study.
Common questions
Is a desktop-only study worth doing? Only as a screening step. Results are only as accurate as the model, and the model is only as accurate as the field data. If breaker settings have drifted from the drawings, a desktop study produces labels that are confidently wrong.
Can we bundle a coordination study? Yes, and you usually should — same model, lower combined cost, and coordination changes are a primary lever for reducing incident energy.
How often does it need updating? NFPA 70E requires review at intervals not exceeding five years, and after modifications that could change the results — new service, added generation, transformer or breaker changes, revised settings.
What should we have ready before asking for a quote? An approximate equipment count, whatever one-lines exist, your utility service information, and the list of sites in scope. The clearer that picture, the tighter the estimate.
